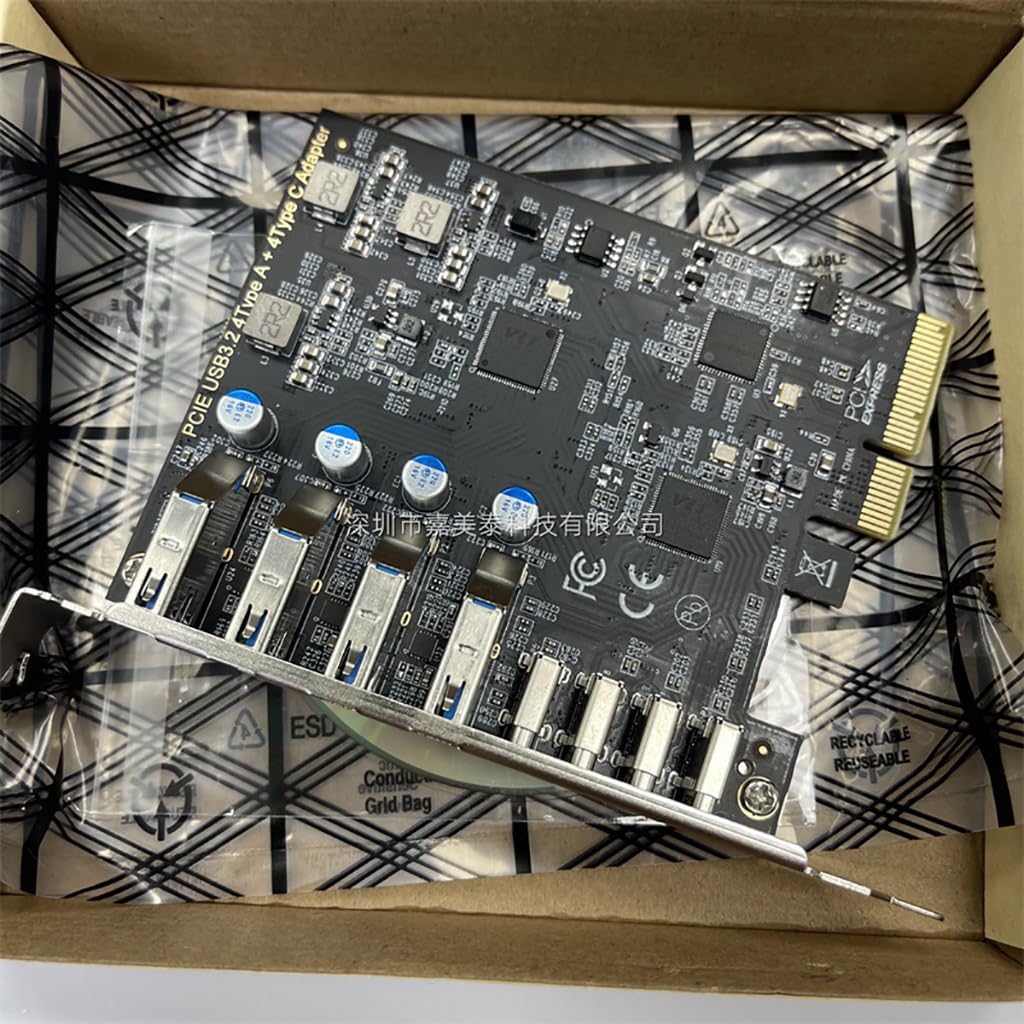

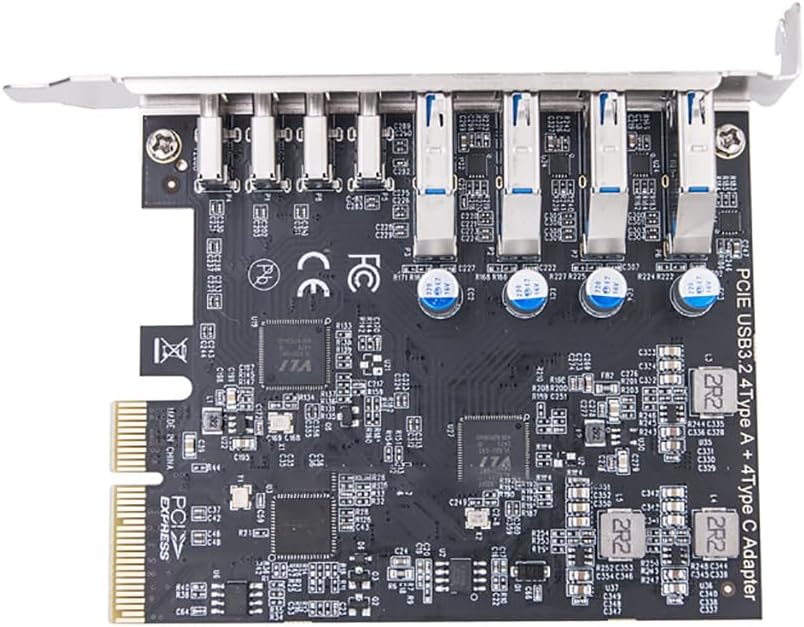

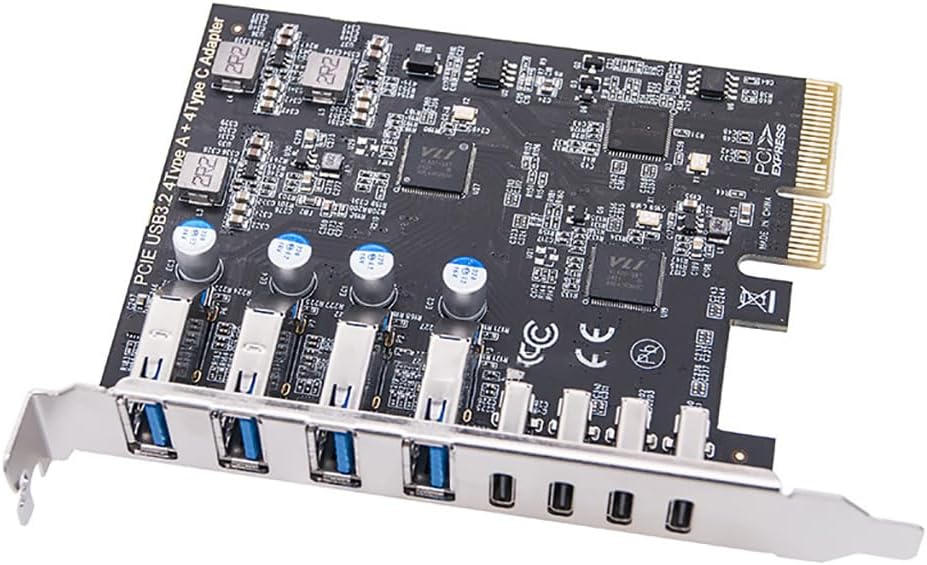

JMT PCI-E 4X to 8Ports Expansion Card 4Port USB-C + 4 Type-A 10Gbps+10Gbps MCA912 for Full Height Baffle PC Desktop
Product details
| Management number | 208554722 | Release Date | 2026/03/22 | List Price | US$19.99 | Model Number | 208554722 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
JMT PCI-E 4X to 8Ports Expansion Card 4Port USB-C + 4 Type-A 10Gbps+10Gbps MCA912 for Full Height Baffle PC Desktop Product Detail: Product Interface:PCI-E 4X (Compatible with 4X 8X 16X slots) Output Connector:TYPE-A*4 + USB-C*4 Interface Specification:USB3.2 gen2 Product Rate:10Gbps+10Gbps (Total 20Gbps) Supported Size:Full height baffle/not support small chassis Main Control Chip: AS M3142+VL822+VL822 Main Control Features: New generation AS M3142 integrated circuit Improved performance and higher power efficiency, saving up to 50% of power consumption. Independent power supply over-current and over-voltage protection. Protects your computer motherboard from damage. 8 ports can be used simultaneously without external power supply Each C port can support 2A high current output, and each A supports super standard 900MA to 1A current output. Multi-chip design No need to wait in line to meet the demand for synchronized transmission of multiple devices ASM3142 chip outputs two 10Gbps signals. Each 10Gbps signal is split into 4 A-port or C-port signals by VL822. Two VL822 output A + C total 8-port signal. Multiple independent solid state capacitors High-performance, high-quality electronic components green low impedance, high stability, high temperature resistance, to protect the safe operation of the machine. PCI-E USB3.2 high-speed transmission up to 10Gbps without external power cord power supply-free use support PCIEX4 X8 X16 slot.
- Product Interface:PCI-E 4X (Compatible with 4X 8X 16X slots). Main Control Chip: AS M3142+VL822+VL822 Main Control.
- Product Rate:10Gbps+10Gbps (Total 20Gbps).

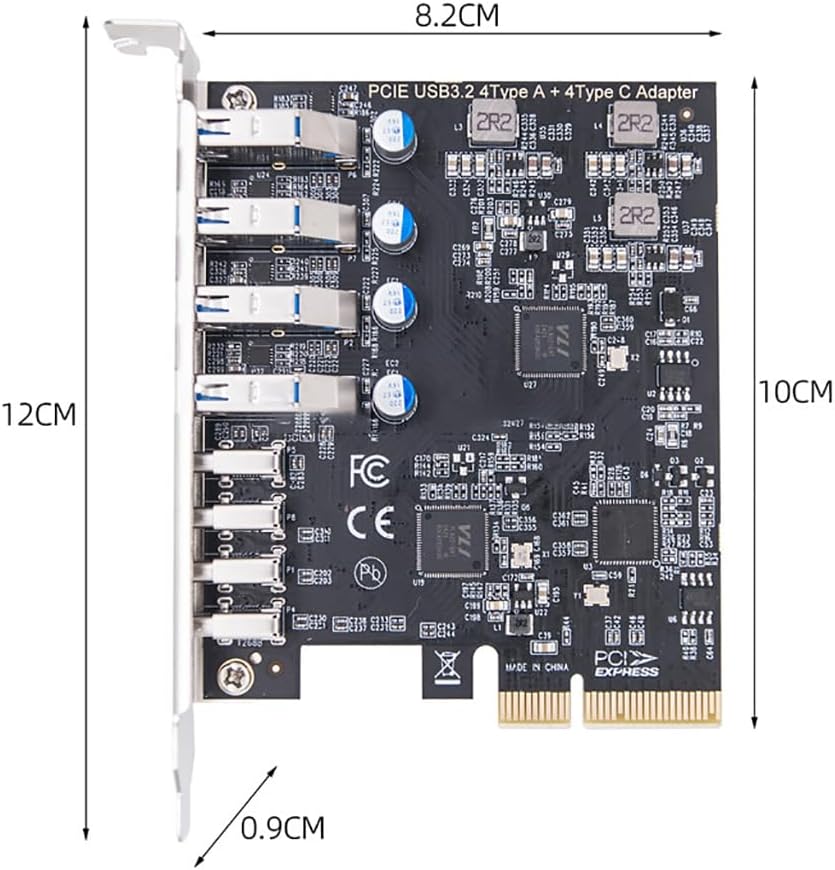

- Supported Size:Full height baffle, Not support small chassis.
- It is recommended to compatible with WIN10 above system. 8 ports can be used simultaneously without external power supply
- .Each 10Gbps signal is split into 4 A-port or C-port signals by VL822. Two VL822 output A + C total 8-port signal.
- Each C port can support 2A high current output, and each A supports super standard 900MA to 1A current output.
| Brand | JMT |
|---|---|
| Item Weight | 5.8 ounces |
| Manufacturer | JMT |
| Package Dimensions | 3.94 x 3.15 x 1.97 inches |
